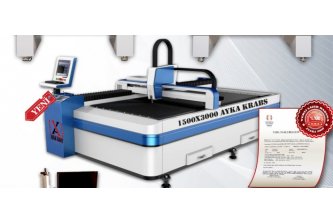

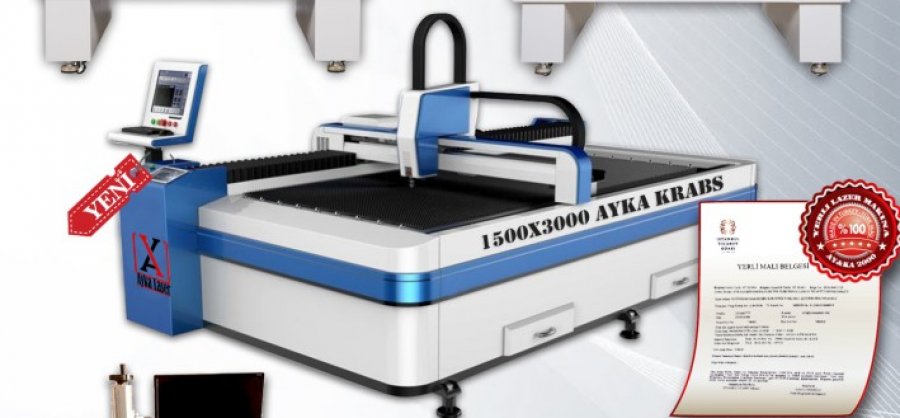

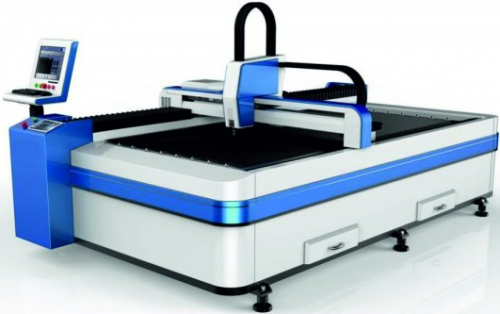

AYKA ,300 Watt Fiber Metal Laser Machine 1500x3000
 |  |
Fiber Laser Cutting Machine
300 W Fiber Laser
Metal Laser Cutting Machine
Krabs Laser
Quick Details
Application: Laser Cutting and Carving
Condition: New
Laser Type: Fiber Laser
Applicable Material: Metal, KRABS 1500 * 3000mm 300w fiber laser cutting machine
Cutting Thickness: 0-8mm
Cutting area: 1500 * 3000mm
Cutting Speed: 25m / min
Cooling Mode: Water Cooling - 6300
Control Software: Cypcut
Supported Graphics Formats: AI, BMP, DST, DXF, DXP, PLT,
Place of Origin: Turkey
Brand Name: Ayka KRABS LASER
Model Number: KRABS-300
Certification: CE, ISO, Domestic Goods Origin
Laser Power: 300W
Laser tube: Raycus
Type: Fiber Lasr Cut
Function: Cutting of Metal Materials
Working area: 1500mmX3000mm
Color: Blue-white
Warranty: 2 YEARS
Working Area (L * W) 3000mm × 1500mm
Laser tube: 300W Raycus fiber laser tube
X, Y, Z axis spacing: 3025mm / 1525mm / 100mm
Material thickness: 0.1-2.8mm (depending on the material)
Maximum cutting thickness: 3mm
Position accuracy: 0.03mm
Maximum travel speed: 20m / min
Net weight: 1500kg
Operating temperature: 0 ℃ -40 ℃
Control system: MPC6595
Worktop maximum load: 1500kg
Drive type X, Y axis: import servo drive (Panasonic, Japan)
Motion mode: TBI with screw thread
Machine size (L * W * Y): 4300 * 2000 * 1300mm
